Description
465mm/ 18″ blade size Spal Brushless Blowing Fan 24 V – VA164-BBL1002HT/R-116A

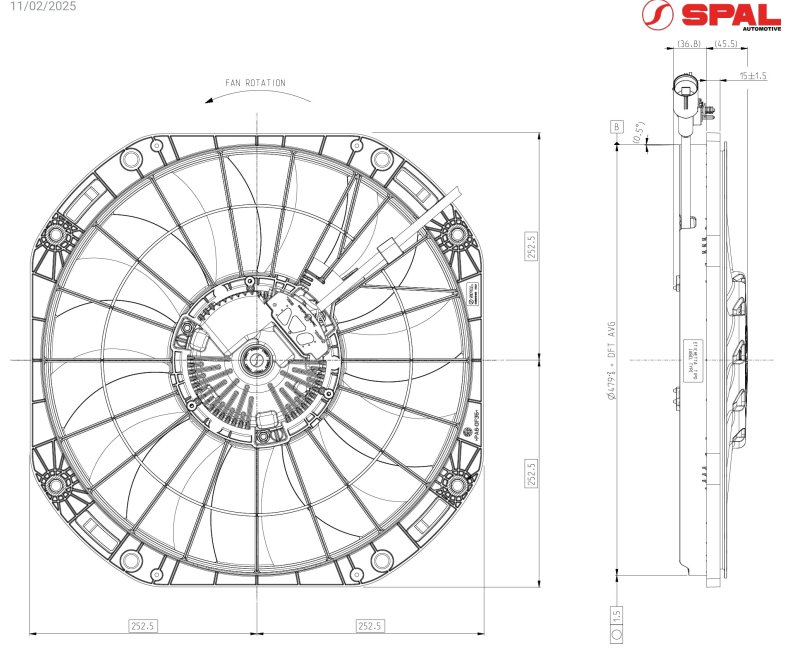

- Outside dimension 505x505mm
- PWM and analog input for continuous adjustment of fan speed, but also possible to run at full speed off 24V.
- Fully sealed motor with built-in internal electronics
- IP68 and IP6K9K protection
- High resistance to vibration and mechanical stress
- Very long life under all conditions
- Spark free
- High efficiency and low power consumption
- Low noise and vibration
- On-board diagnostics
- Higher ambient working temperature
- 1100W power draw, 50A
Use high temp silicone wires to allow compatibility with Yazaki plug for required amp draw.
